EIA Overview
Libya is a member of the Organization of the
Petroleum Exporting Countries, the holder of Africa's largest
proved crude oil reserves, and an important contributor to the
global supply of light, sweet crude oil.
Libya joined the Organization of the Petroleum Exporting
Countries (OPEC) in 1962, a year after Libya began exporting
oil.1 Libya holds the largest amount of proved

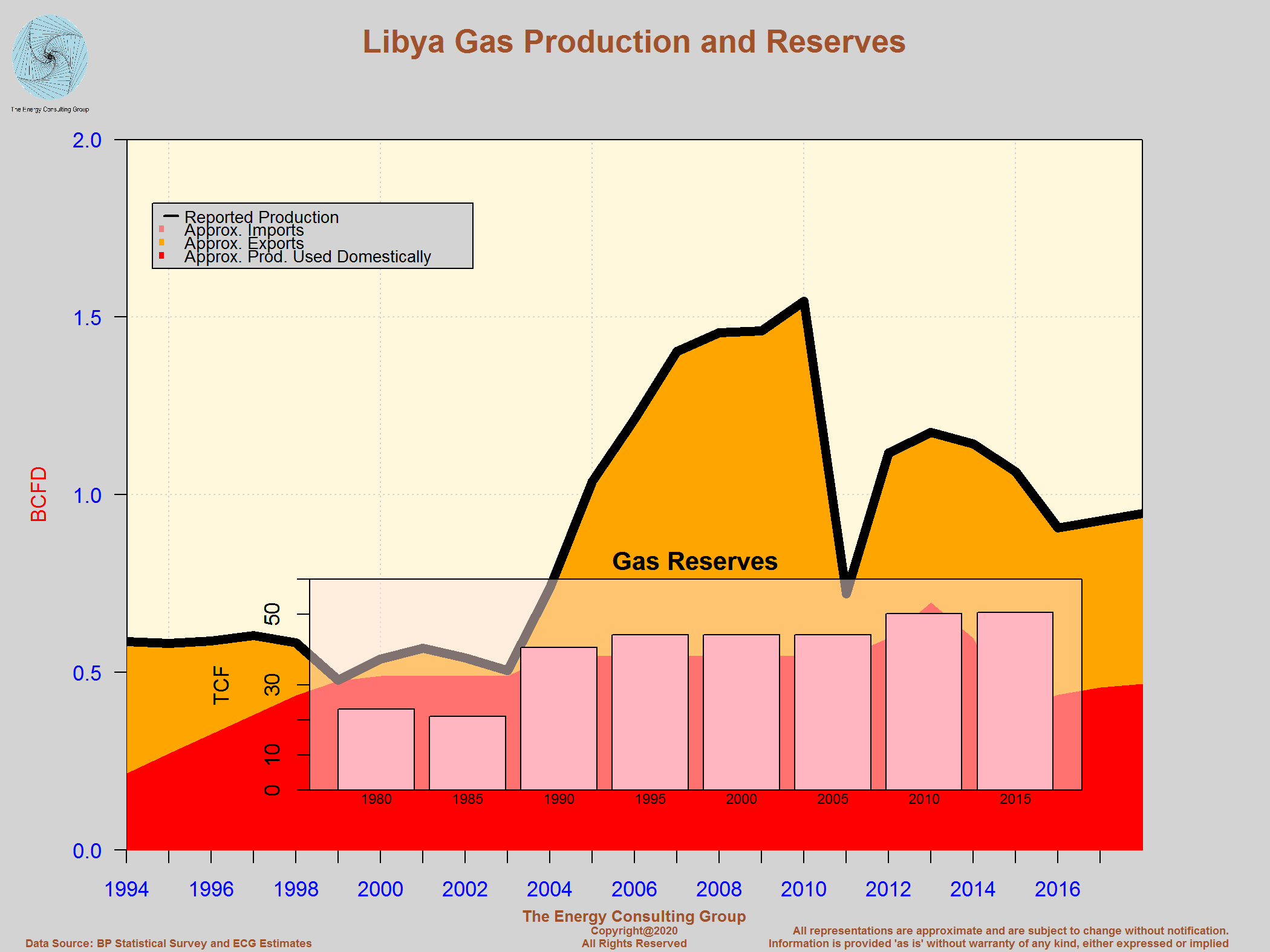

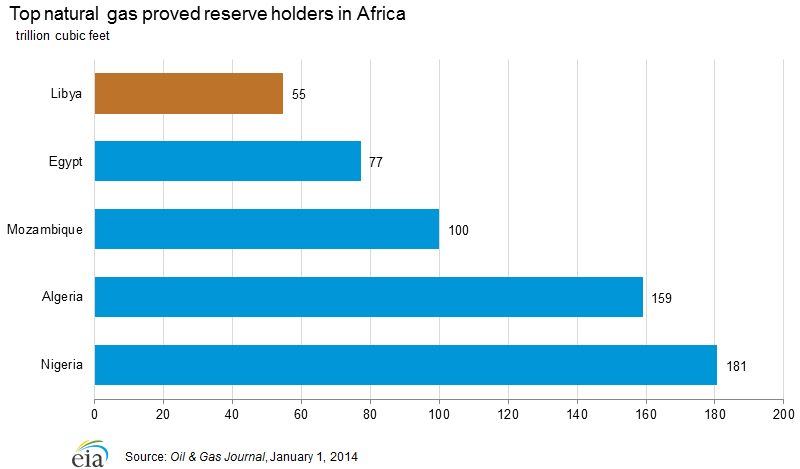

crude oil reserves in Africa, the fourth-largest amount of
proved natural gas reserves on the continent, and it is an
important contributor to the global supply of light, sweet
(low sulfur) crude oil, which Libya mostly exports to European
markets.
Libya's hydrocarbon production and exports have been
substantially affected by civil unrest over the past few
years. In 2011, Libya's hydrocarbon exports suffered a
near-total disruption during the Libyan civil war, and the
minimal and sporadic production that occurred was mostly
consumed domestically. In response to the loss of Libya's oil
supplies in the summer of 2011, the International Energy
Agency (IEA) coordinated a release of 60 million barrels of
oil from the emergency stocks of its member countries through
the Libya Collective Action—the first such release since
Hurricane Katrina in 2005.
Libya's oil production recovered in 2012, but it still
remained lower than levels prior to the civil war. In 2013 and
2014, Libya experienced major swings in its crude oil
production, falling to its lowest level since the civil war of
0.2 million barrels per day (bbl/d) at the end of 2013. For

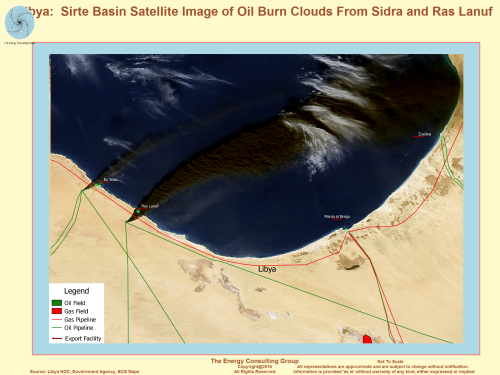

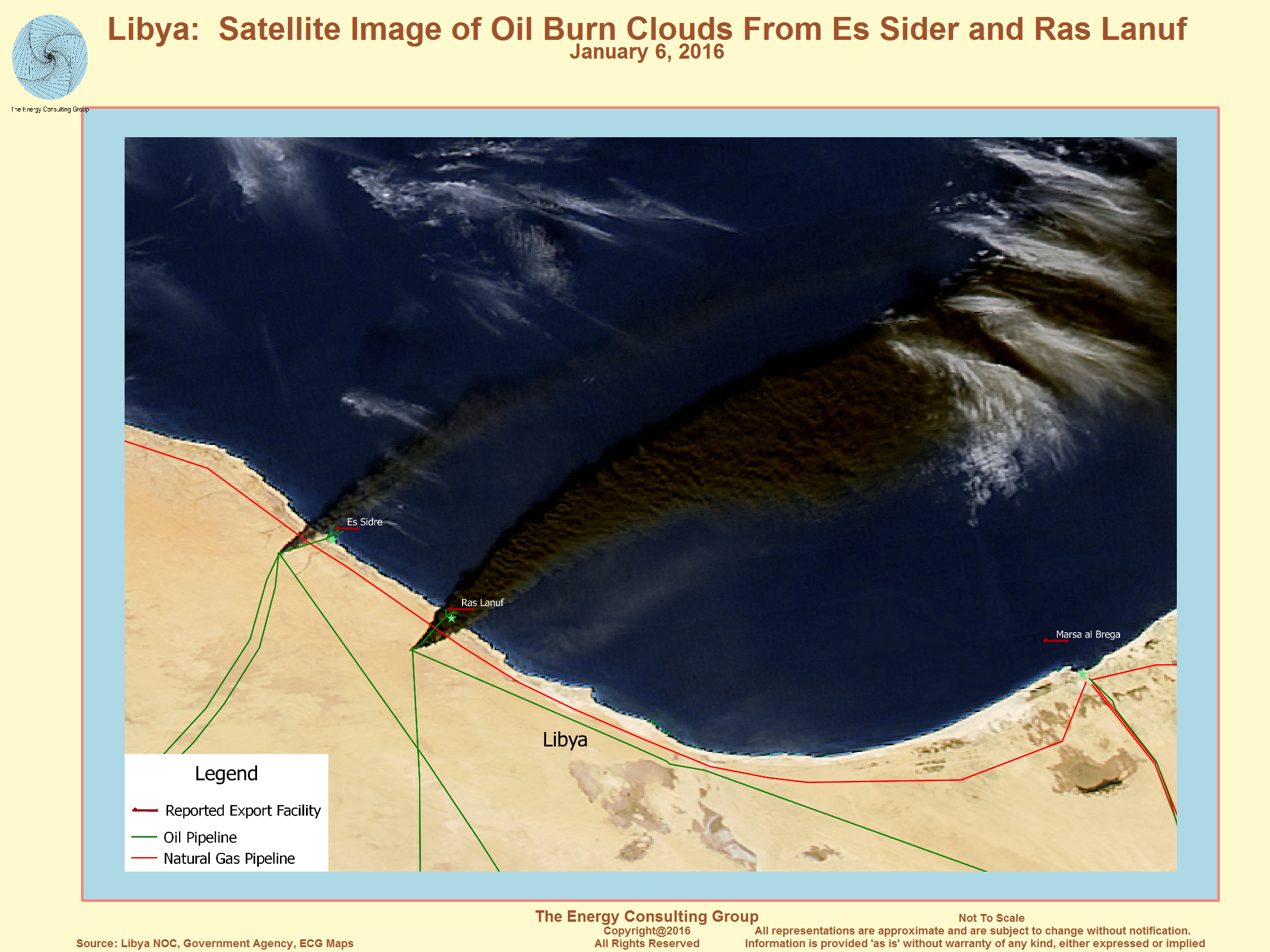

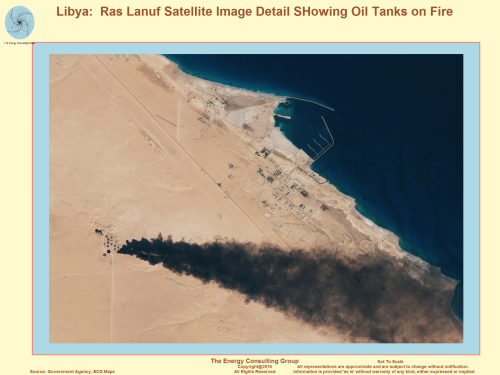

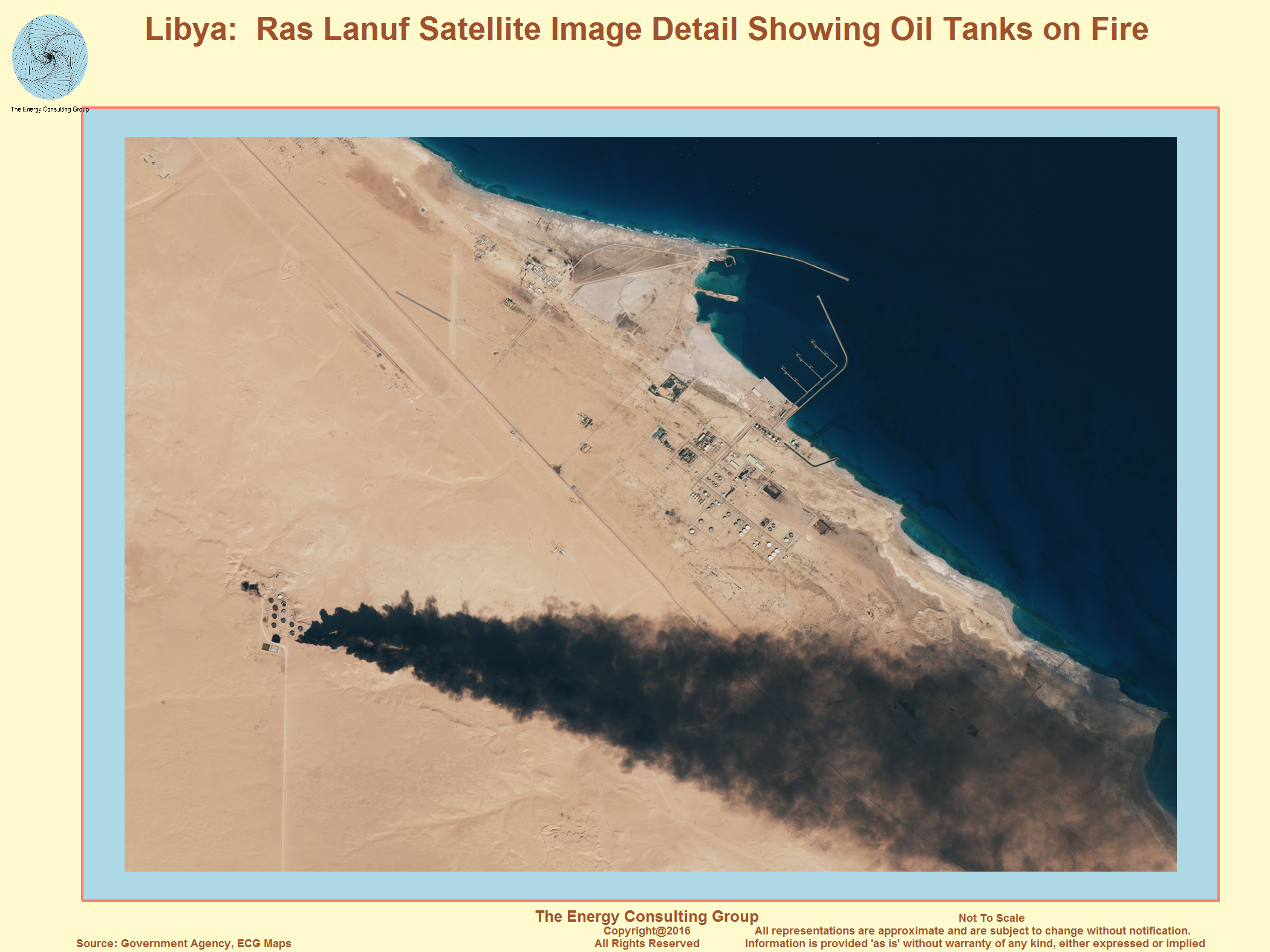

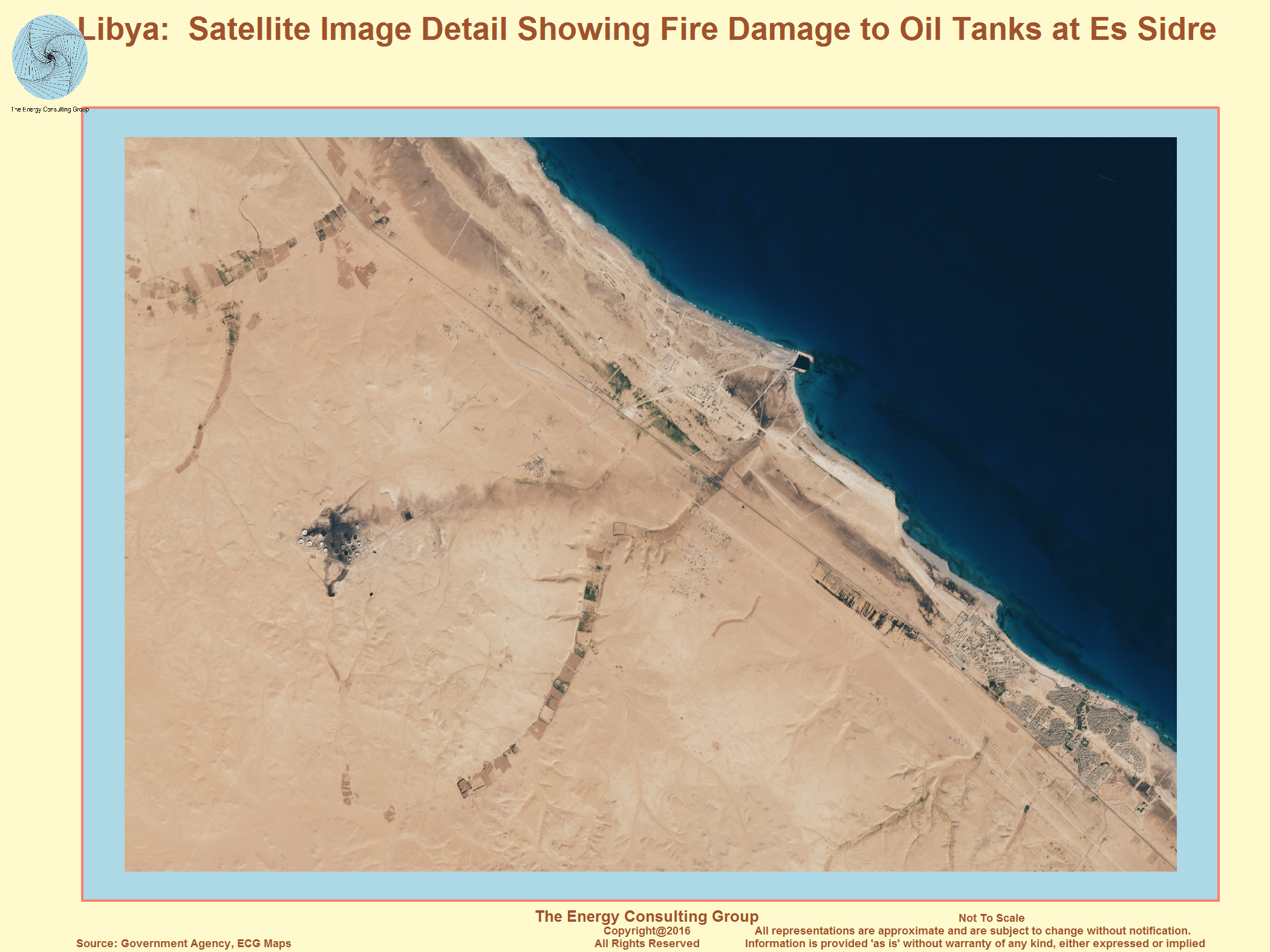

almost a year, Libya's major eastern oil ports (Es Sidra, Ras
Lanuf, Zueitina, and Marsa al-Hariga) were not able to export
oil because of a blockade led by Ibrahim Jidran, a branch
leader of the Petroleum Facilities Guard (PFG), which was
hired to protect the facilities. The port blockades began in
late-July 2013 and ended after deals were made to reopen the
ports in April 2014 (Zueitina and Marsa al-Hariga) and June
2014 (Es Sidra and Ras Lanuf). In the western part of Libya,
production at the 340,000-bbl/d El Sharara field and, to a
lesser extent, the 100,000-bbl/d El Feel field has also been
repeatedly shut down.
Libya's economy is heavily dependent on hydrocarbon
production. According to the International Monetary Fund
(IMF), oil and natural gas accounted for nearly 96% of total
government revenue and 98% of export revenue in 2012. Roughly
79% of Libya's export revenue comes from crude oil exports,
which brought in about $4 billion per month of net revenues in
2012.2 The U.S. Energy Information Administration's
(EIA)
OPEC Revenues Fact Sheet shows that Libya's net oil export
revenues totaled $4 billion during the first six months of
2014 as a result of the drop in oil export volumes. During the
2011 civil war, the drop in oil and natural gas production led
to an economic collapse, and real gross domestic product (GDP)
declined by 62% for the year. Libya's GDP growth rebounded in
2012, reflecting the relative stability of oil production, but
it contracted again by almost 14% in 2013. Projected oil
production is expected to fall by another 20% in 2014.3
Oil

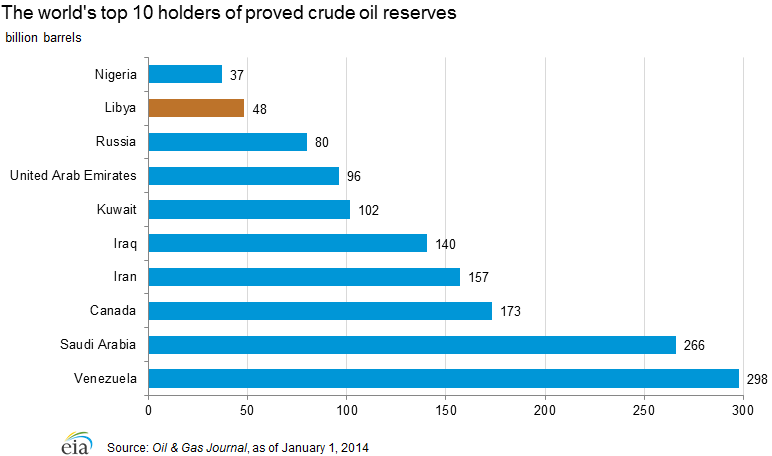

According to the Oil & Gas Journal (OGJ), Libya
had proved crude oil reserves of 48 billion barrels as of
January 2014—the largest endowment in Africa, accounting for
38% for the continent's total, and the ninth-largest amount

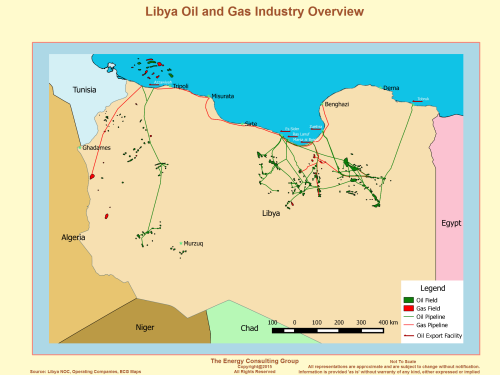

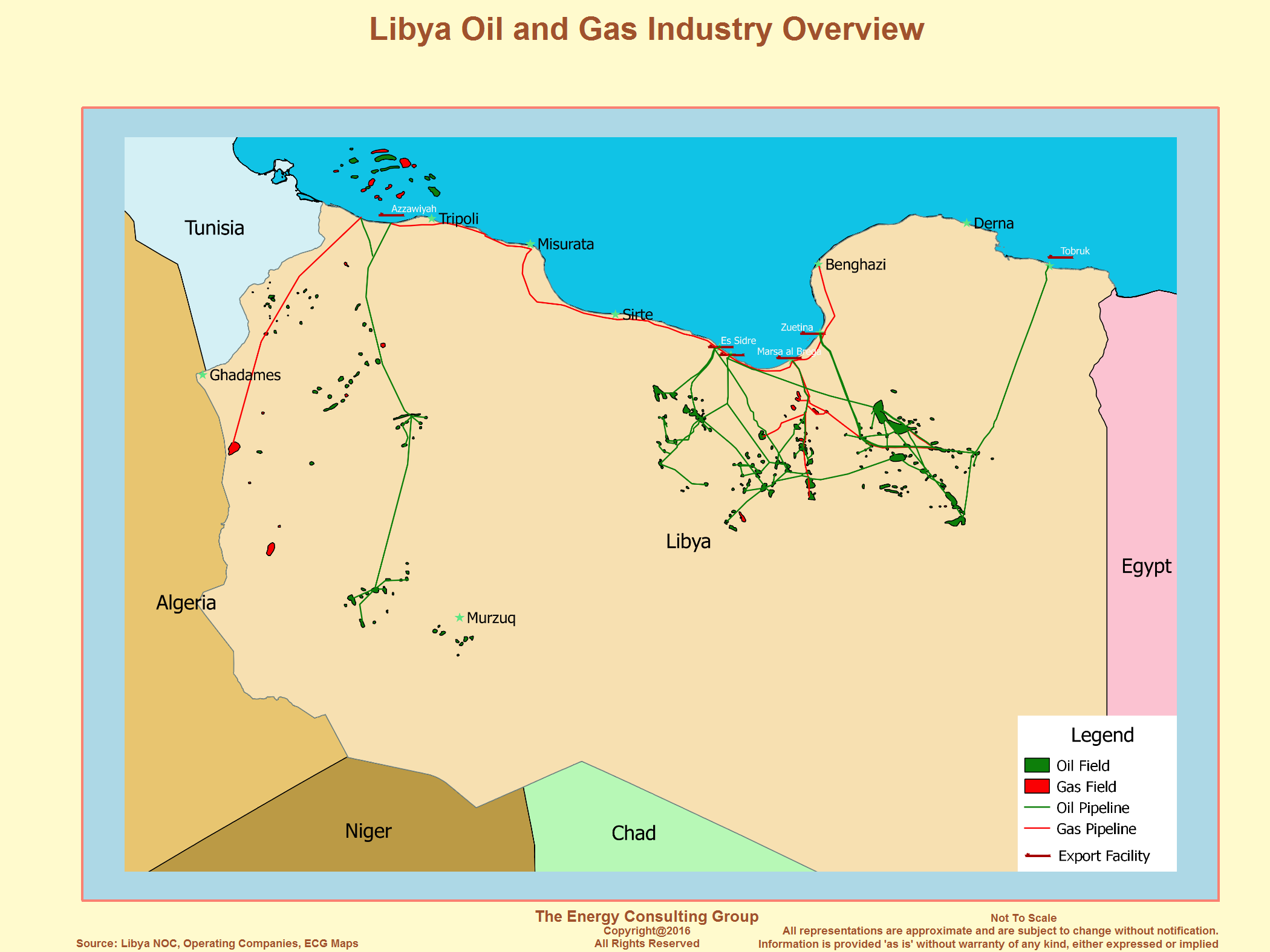

globally.4 Libya has six large sedimentary
basins—Sirte, Murzuk, Ghadames, Cyrenaica, Kufra, and the
offshore, which the government believes has substantial

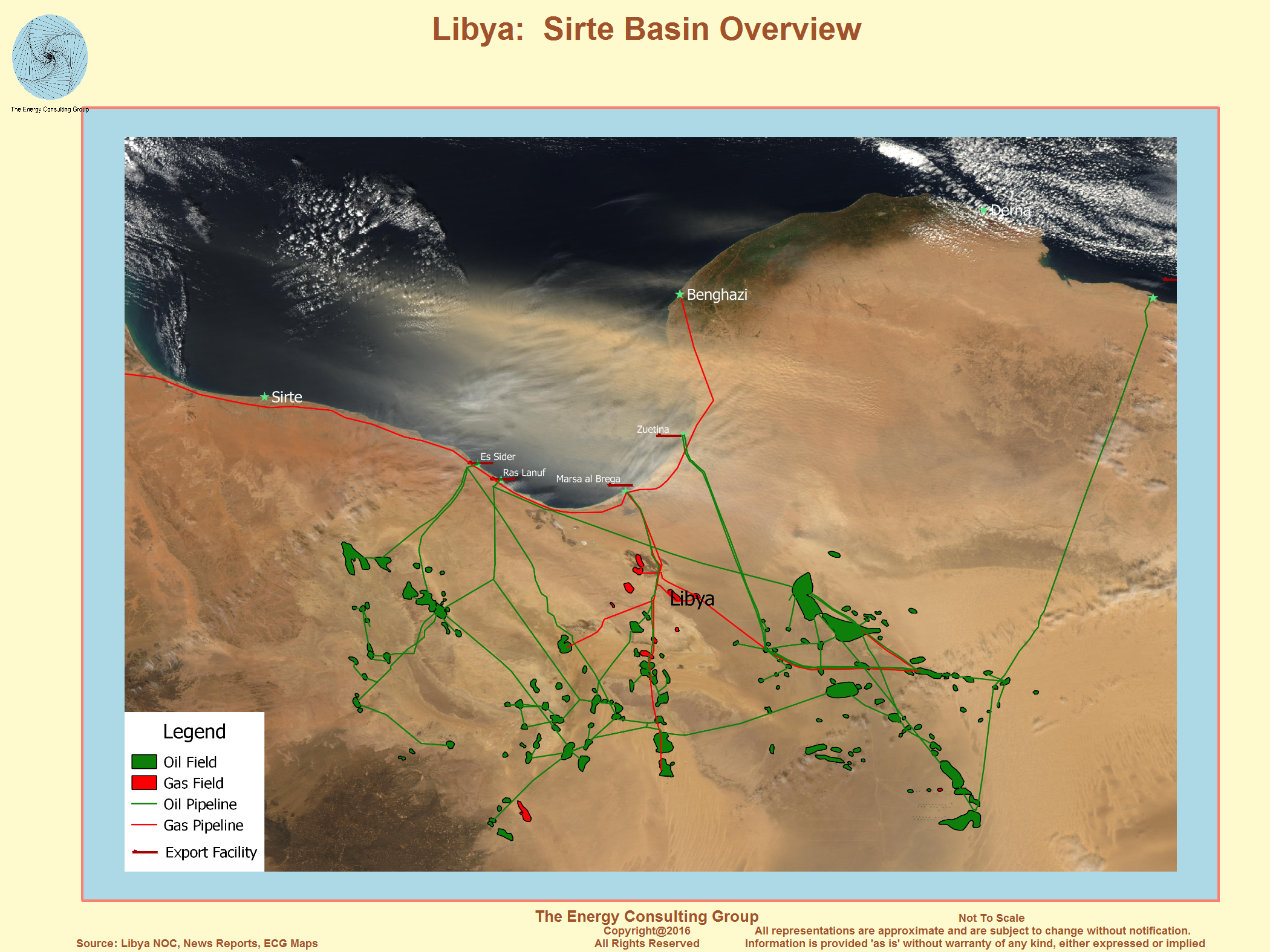

undiscovered potential. About 80% of Libya's recoverable
reserves are located in the Sirte basin, which also accounts
for most of the country's oil output.5 A majority
of Libya remains unexplored, and ongoing civil unrest has
prevented a large-scale exploration program.
Exploration and development
The country's National Oil Corporation (NOC)
has emphasized the need to apply enhanced oil recovery techniques
to increase crude oil production at maturing oil fields. Before
the 2011 civil war, the NOC claimed that capacity additions of
around 775,000 bbl/d were possible from existing oil fields.
Before the 2013 oil sector crisis, the Libyan government
had made several announcements of plans to increase crude oil
production capacity to 1.7 million bbl/d by the end of 2013
and to 2 million bbl/d in the next few years.6 In
the past, Libya's NOC emphasized investing in enhanced oil
recovery (EOR) methods to counter depletion of reserves and to
expand production capacity at existing fields. In 2009, the
NOC announced a development program that entailed the
development and rehabilitation of 24 oil and natural gas
fields. The NOC's development program identified several
oil-producing fields where capacity could be expanded. The
largest capacity additions were planned for the Waha (Oasis)
fields, the Nafoura/Augila complex, and the El Feel (Elephant)
field. The program aimed to boost total capacity by 775,000
bbl/d from existing fields.7 Currently, plans to
pursue any capital-intensive EOR projects in Libya have been
postponed because of the political instability and volatile
security environment.
Management of the hydrocarbon industry
Prior to former Libyan leader Muammar Qadhafi's ouster,
Libya's oil industry was run by the state-owned NOC. The NOC
was responsible for implementing Exploration and Production
Sharing Agreements (EPSA) with international oil companies
(IOCs), as well as its own field development and downstream
activities. Its subsidiaries include the Sirte Oil Company and
the Arabian Gulf Oil Company (Agoco). The NOC continues to be
the main body overseeing Libya's oil and natural gas industry.
However, the situation recently became complicated as Libya
currently has two competing parliaments vying for power—the
elected and internationally recognized House of
Representatives and the recently reinstated General National
Congress (GNC). The GNC appointed a Ministry of Oil, although
the ministry's role in the oil industry and the degree to
which it is working with the NOC is still unclear.
Even before the 2011 civil war, policy makers in Libya had
been debating the content for a new hydrocarbon law. The last
hydrocarbon law passed in 1955 is outdated and does not
include much information on natural gas development and EOR
projects. The proposed new law aims to establish a unified
national law that encompasses all aspects of the hydrocarbon
sector. After the 2011 civil war, there were a series of
regulatory reviews pertaining to the structure and management
of the hydrocarbon industry. The focus was on expanding the
downstream sector, subsidy reform, restructuring of the NOC,
and potential changes to upstream contracts and terms.
However, it appears that formal discussions have been stalled
because of the current unrest.
IOCs, mainly from the United States and Europe, participate
in Libya's hydrocarbon sector. IOC involvement in Libya
experienced a resurgence in the mid-2000s as various rounds of
sanctions were lifted by the United States and the United
Nations (UN). Companies were lured by the country's bountiful
resources, which outweighed regulatory uncertainties and the
fact that contractual terms of the EPSA-IV (2005) licensing
round were unfavorable to foreign investors. Now, IOCs are
confronted with new types and unexpected degrees of political
and security risks in Libya.
In the short term, IOC involvement in Libya will depend on
resolution of political issues, operational security, and new
regulatory legislation that is enacted in the future. After
Qadhafi's removal, Libyan officials have often attempted to
reassure IOCs that they would honor the sanctity of existing
contracts, while also reserving the right to review and revise
those contracts that were secured through corrupt practices.
Oil production

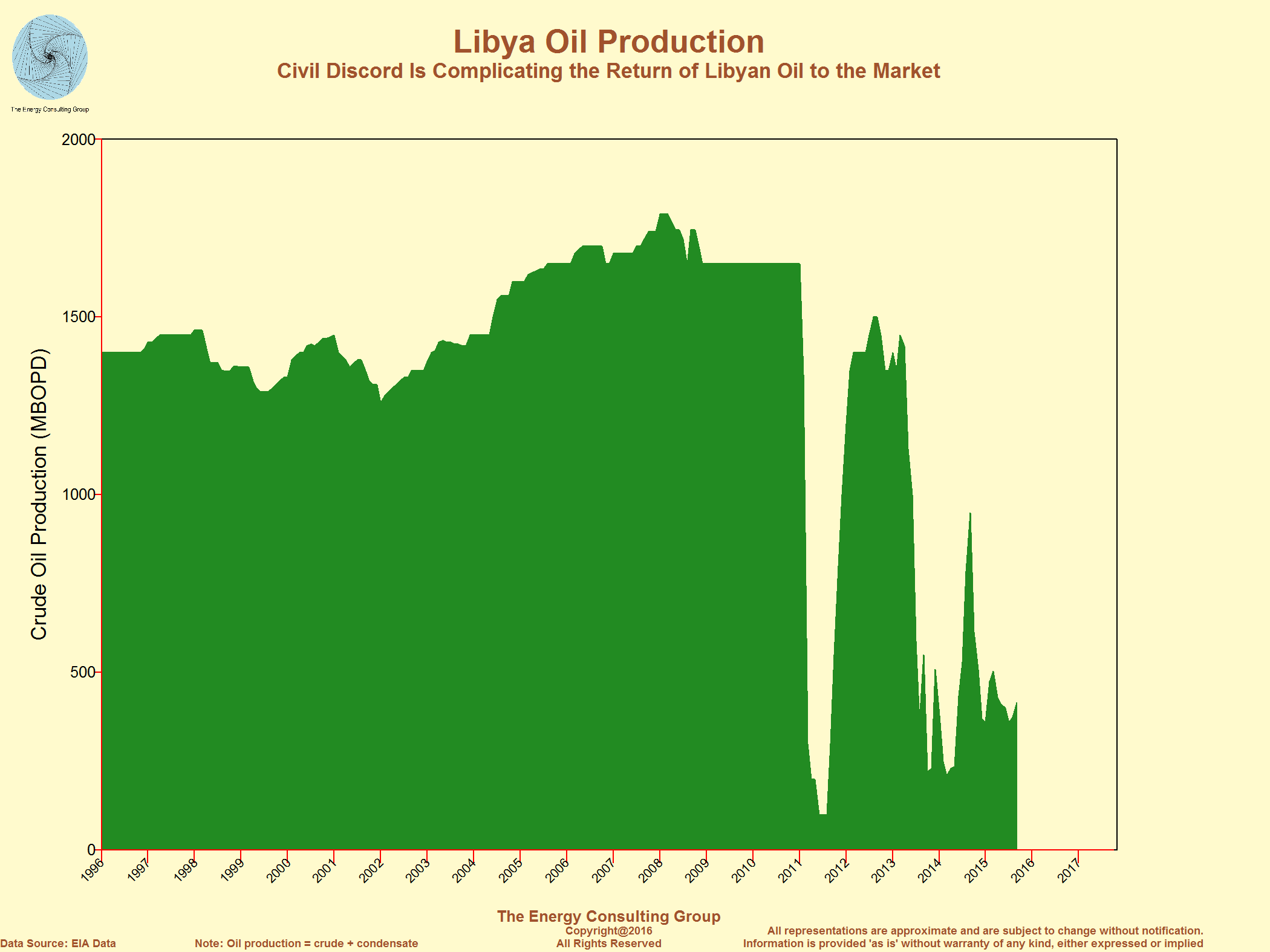

Libya's oil production was disrupted for most
of 2011 because of the civil war, but it recovered relatively
quickly following the cessation of most hostilities by the autumn
of that year. The country's oil sector was crippled again in
mid-2013 as widespread protests led to a sharp deterioration of
the security environment at oil facilities and the closure of
loading ports, oil fields, and pipelines. Most loading ports have
since re-opened, but sporadic protests continue to affect oil
production.

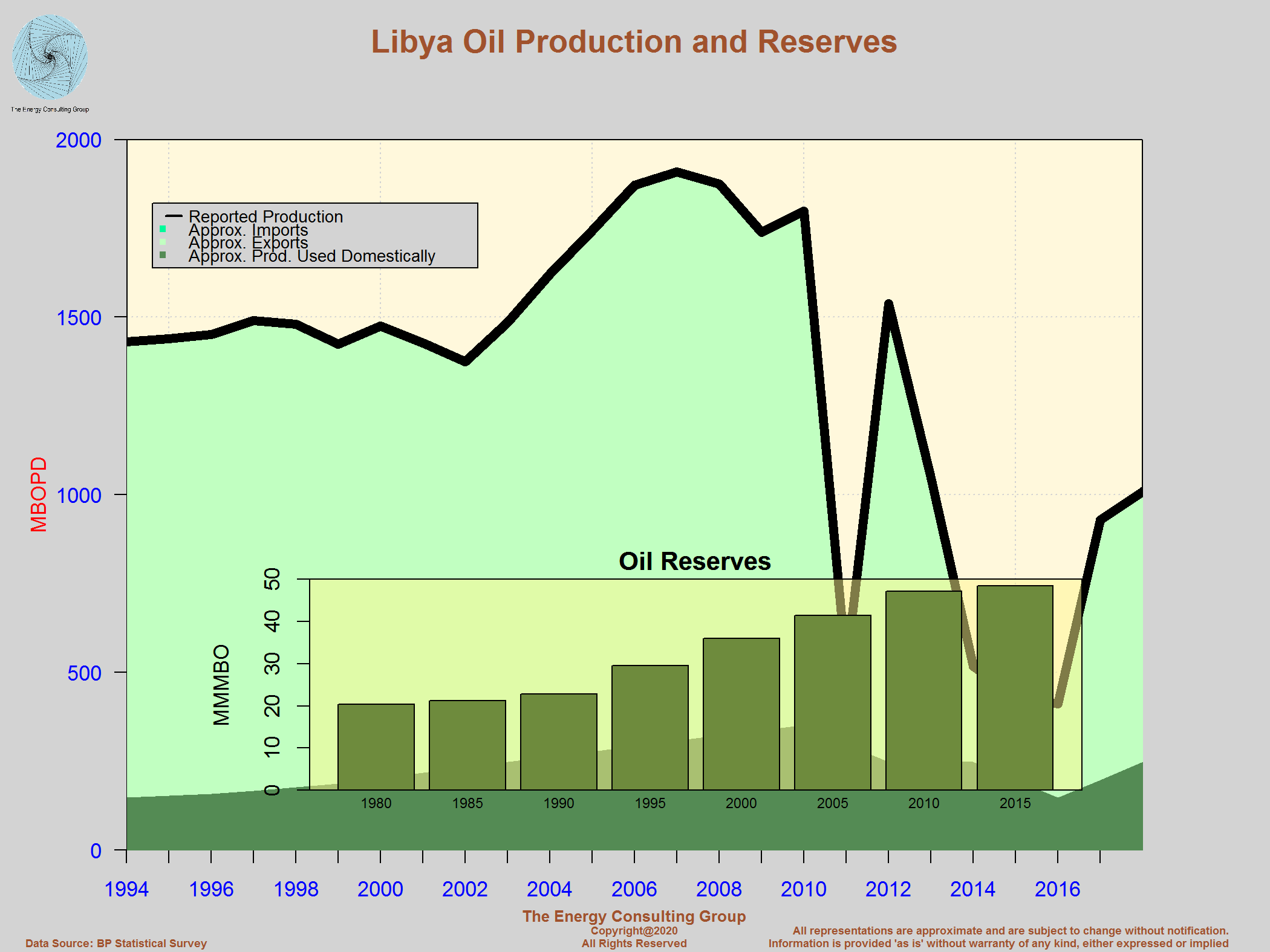

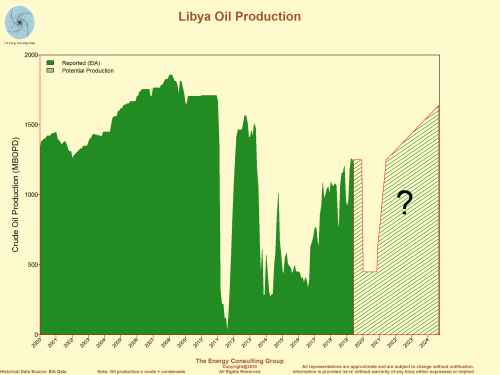

Prior to the onset of hostilities in 2011, Libya had been
producing an estimated 1.65 million bbl/d of mostly
high-quality light, sweet crude oil. Libya's production had
increased for most of the previous decade, from 1.4 million
bbl/d in 2000 to 1.74 million bbl/d in 2008, but production
remained well below peak levels of more than 3 million bbl/d
achieved in the late 1960s. Oil production in Libya from the
1970s into the 2000s had been affected early on by the partial
nationalization of the industry and later by sanctions imposed
by the United States and the UN that impeded the investment
and equipment needed to sustain oil production at higher
levels.
EIA estimates that Libya's current effective production
capacity is slightly below 1.6 million bbl/d. Effective
production capacity is defined as the amount of production
that could come back to oil markets within a year. Effective
production capacity takes into account a permanent or
prolonged production loss due to the degradation of shut-in
oil fields and damages to operational components that would
take longer than a year to repair, which is dependent on the
financial, security, and political situation. Some of Libya's
production was compromised from the prolonged closure of oil
fields during the 2011 conflict, but a vast majority of
production was restored and restarted quicker than most
industry analysts expected.

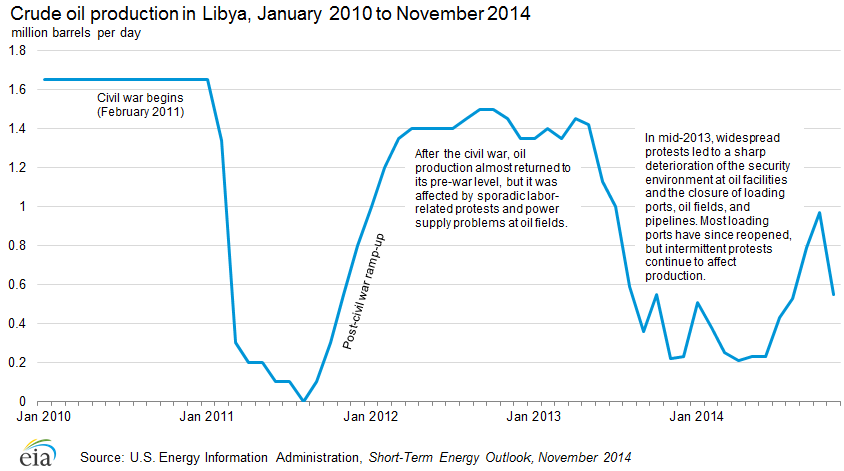

Libya is currently going through another crisis that has
crippled its oil sector. From January 2014 to November 2014,
Libya's crude oil production averaged 450,000 bbl/d, nearly
500,000 bbl/d lower than the 2013 average and 900,000 bbl/d
lower than the 2012 average. From mid-2013 to mid-2014,
protests at major oil loading ports in the central and eastern
regions of Libya forced the complete or partial shut-in of oil
fields linked to the ports. Oil fields in the western part of
the country were also closed intermittently during that time
period because of protests at the field level or along the
pipeline that transports the crude to the export terminals. At
the time this report was written, Libya continues to
experience sporadic protests throughout the country that are
affecting production.
Libya also produces an estimated 50,000 bbl/d to 100,000
bbl/d of non-crude liquids, which include condensate and
natural gas plants liquids. These non-crude liquids typically
come from the Mellitah gas processing plant, a gas processing
plant at the Intisar complex, and a natural gas liquids plant
in Marsa al-Brega.

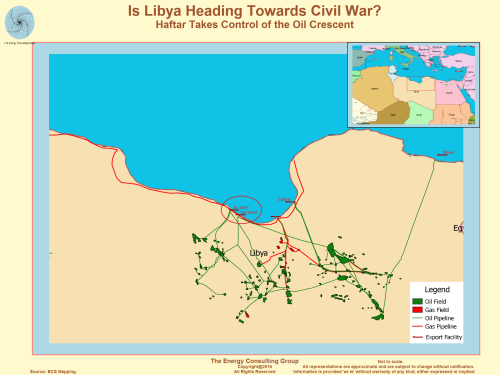

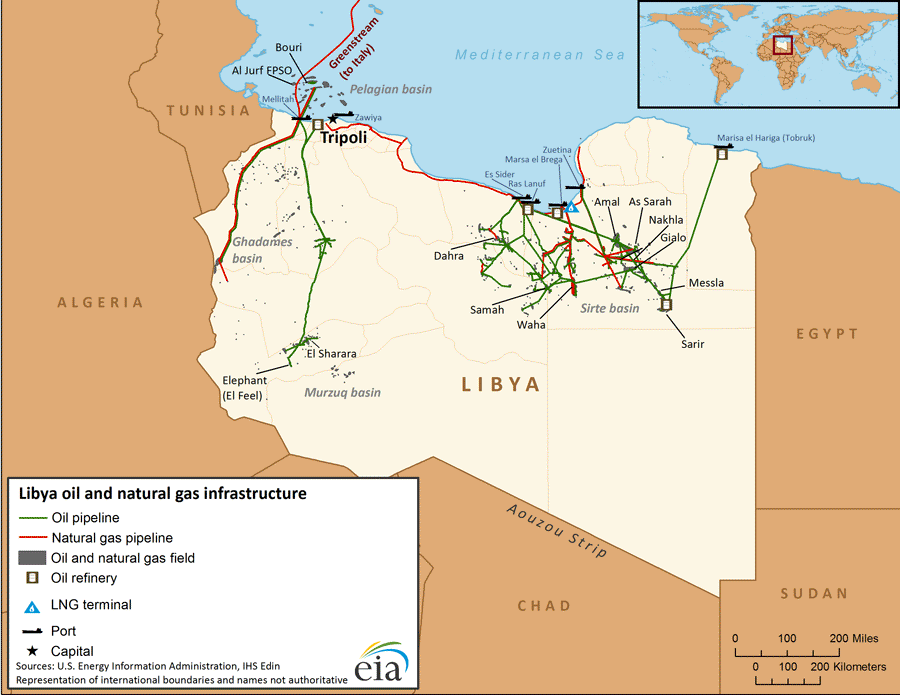

Libya's oil ports, fields, refineries, and
operators
Load ports |
Region |
Main fields |
Refinery |
Field operator |
Lead foreign partners |
Es Sider (Sidra) |
central-east |
Waha, Samah, Dahra, and Gialo |
|
Waha Oil Company |
ConocoPhillips, Marathon, Hess |
Mabruk (Mabrouk) |
|
Mabruk |
Total |
Ras Lanuf |
central-east |
Nafoura |
|
Agoco |
none |
As Sarah/Jakhira b(C96), Nakhla (C97)1 |
|
Wintershall |
Wintershall, Gazprom |
Amal, Naga, Farigh |
|
Harouje |
Suncor (PetroCanada) |
Marsa al-Hariga (Tobruk)2 |
east |
Sarir, Messla, Beda, Magrid, Hamada3 |
Ras Lanuf; Tobruk; Sarir |
Agoco |
none |
Zueitina |
central-east |
Abu Attifel, NC-125 |
|
Mellitah |
Eni |
Nakhla (C97)1 |
|
Wintershall |
Wintershall, Gazprom |
Intisar Complex and NC744 |
|
Zueitina Oil Company5 |
Occidental, OMV |
Marsa al-Brega |
central-east |
Brega (Nafoura/Augila complex) |
Marsa al-Brega |
Agoco |
none |
Nasser (Zelten), Raguba, Lehib (Dor Marada)6 |
Sirte Oil |
none |
Mellitah |
west |
El Feel (Elephant), mixed with condensate from
Wafa and Bahr Essalam gas fields |
|
Mellitah |
Eni |
Zawiya or Zawia (Tripoli) |
west |
El Sharara (NC-115) and NC-186 fields |
Zawiya |
Akakus |
Repsol, Total, OMV |
Bouri7 |
west |
Bouri (offshore) |
|
Mellitah |
Eni |
Farwah (Al-Jurf)7 |
west |
Al-Jurf (offshore) |
|
Mabruk |
Total |
1Oil from Nakhla (C97) is mixed with
oil from Eni's Abu Attifel field. 2Most
of the production from Agoco fields can be sent to
Ras Lanuf and Marsa al Hariga (Tobruk). 3Oil
from the Hamada field, which is located in the
West, is sent to Zawiya. It is typically used
domestically. 4Oil produced at NC74
is sent to Ras Lanuf. 5The Zueitina
grade can also be sent to the Ras Lanuf terminal.
6Output from Lehib is mixed with output
from one of Harouje's fields and sent to Ras
Lanuf. 7Bouri and Farwah (Al-Jurf)
are offshore loading platforms of Mellitah.
Sources: U.S. Energy Information Administration
based on data from Energy Intelligence, Middle
East Economic Survey (MEES), company websites,
Oil & Gas Journal, and Lloyd's List
Intelligence (APEX tanker data)
|
Crude oil exports
Libya typically exports most of its crude oil
(70% to 80%) to European countries, with Italy being the leading
recipient. The United States resumed importing crude oil from
Libya in 2004 after sanctions were removed, although the amount
imported typically is small.
In 2013, Libya exported an average of 875,000 bbl/d of
crude oil, including condensate, which is lower than the 2012
level of almost 1.3 million bbl/d but higher than the 2011
level of 400,000 bbl/d during the civil war.8 In
2013, Libya's exports were curtailed because of disruptions to
oil production that escalated in mid-2013 and continued into
2014.
Typically, most (70% to 80%) of Libya's crude oil is sold
to European countries. In 2013, about 75% of Libya's crude
exports were sent to Europe; the leading single recipients
were Italy, Germany, and France. The United States restarted
oil imports from Libya in 2004, after sanctions were lifted.
The United States imported 43,000 bbl/d of crude oil from
Libya in 2013, representing only about 0.6% of total U.S.
imports during that year.
Oil consumption and refining
Libya consumed an average of 248,000 bbl/d of petroleum and
other liquids in 2013. Most of Libya's oil consumption comes
from its domestic refineries. According to OGJ, Libya has five
domestic refineries with a combined crude oil distillation
capacity of 378,000 bbl/d.9 Libya's NOC has
periodically released plans to expand the downstream sector
and upgrade its existing refineries, but ongoing unrest over
the past few years has prevented any large-scale new
investments.
Libya's oil refineries and capacities
Refinery name |
Capacity (000' bbl/d) |
Ras Lanuf |
220 |
Zawiya |
120 |
Tobruk |
20 |
Sarir |
10 |
Marsa al-Brega |
8 |
Total |
378 |
Source: Oil & Gas Journal,
January 1, 2014 |
Natural gas
As with its oil sector, Libya's natural gas
industry recovered in 2012, but production still remained below
the pre-war level. Libya's rank as a producer and reserve holder
is less significant for natural gas than it is for oil. About half
of its natural gas production is exported to Italy via the
Greenstream pipeline.
As of January 1, 2014, OGJ estimated that Libya's proved
natural gas reserves were almost 55 trillion cubic feet,
making it the fifth-largest natural gas reserve holder in
Africa.10 Prior to the transformative events of
2011, new discoveries and investments in natural gas
exploration had been expected to raise Libya's proved reserves
in the near term.
Sector organization
Many of the same entities involved in oversight and
operations of the oil industry exercise similar functions for
natural gas. Likewise, some of the same questions and
uncertainties about the future are equally applicable to both
sectors. Libya's natural gas sector is mostly state-run by the
NOC and its Sirte Oil Company subsidiary. IOCs are less
involved in natural gas production than they are in oil
production, although Eni is a notable exception because of its
stake in the large Western Libya Gas Project.
Exploration and production
Libya's natural gas production and exports
increased considerably after 2003 with the development of the
Western Libya Gas Project and with the opening of the Greenstream
pipeline to Italy. Italy is currently the sole recipient of
Libya's natural gas exports.

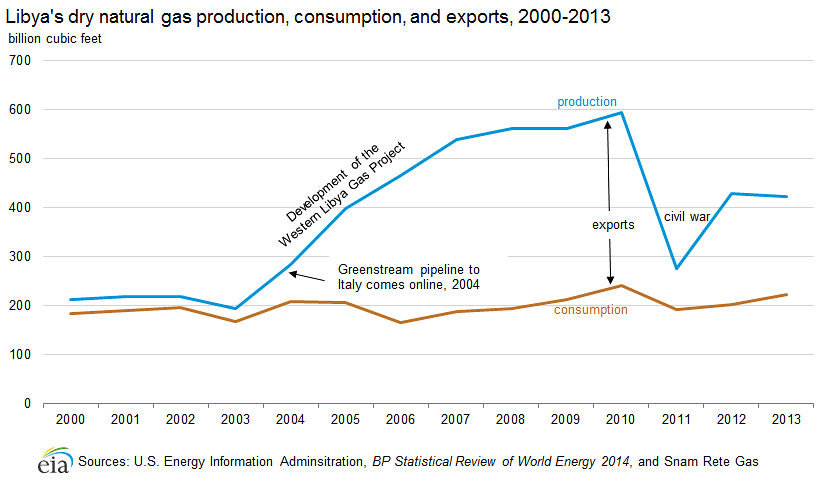

Libya's dry natural gas production grew substantially from
194 billion cubic feet (Bcf) in 2003 to 594 Bcf in 2010. The
Western Libya Gas Project (WLGP), which is operated by Eni and
NOC through the Mellitah Oil & Gas joint venture, accounted
for most of Libya's natural gas production growth after 2003.
The WLGP includes the onshore Wafa and offshore Bahr Essalam
fields. Typically, most of the gas produced from WLGP is
exported via the Greenstream pipeline and the remainder is
consumed domestically. Most other natural gas output in Libya
is produced by the NOC and its Sirte Oil Company subsidiary in
the onshore Sirte Basin and is associated with oil production.
As with oil, Libya's natural gas production was almost
entirely shut in for sustained periods in 2011. Dry natural
gas production averaged 277 Bcf in 2011, more than a 50% drop
from the previous year. Natural gas production soon recovered
to an average of 430 Bcf in 2012 and stayed relatively
unchanged in 2013, according to the BP's Statistical
Review of World Energy 2014.11
The NOC has announced plans to increase the country's
natural gas production from offshore and onshore fields. New
or expanded projects to support this goal include associated
oil and natural gas fields in various stages of development,
most notably Faregh, operated by Waha in the Sirte Basin, and
Mellitah's offshore Bouri field. The NOC also says it intends
to use the natural gas that is currently being flared.
Increased production of marketed natural gas would most likely
result in a greater use of natural gas in the power sector and
free up more oil for export. However, like all prospective oil
and gas plans in Libya, greater development of the natural gas
sector is contingent on support and certainty of political
institutions and the security environment.
Consumption and exports
In 1971, Libya became the third country in the
world, after Algeria and the United States (Alaska), to begin
exporting liquefied natural gas (LNG). In the past, the country
exported a small amount of LNG to Spain. However, the LNG plant
was damaged during the 2011 civil war, and Libya has not exported
LNG since early 2011.
In 2013, Libya consumed about 223 Bcf of dry natural gas,
or slightly more than half of what the country produced. Libya
exported the surplus of its production (200 Bcf in 2013) to
Italy via the Greenstream pipeline.12 Natural gas
production and exports have partially recovered since the 2011
civil war but still remain lower than pre-war levels. In 2011,
natural gas exports dropped to 85 Bcf, about 75% lower than
the previous year. Prior to the 2011 civil war, Libya exported
natural gas via pipeline to Italy and in the form of LNG to
Spain. However, Libya's LNG plant was severely damaged during
the 2011 civil war, and Libya has not exported LNG since early
2011.
Greenstream
Libya's capacity to export natural gas increased
dramatically after October 2004, when the 370-mile Greenstream
pipeline came online. The pipeline starts in Mellitah, where
natural gas piped from the onshore Wafa and offshore Bahr Es
Salam fields is treated for export. It runs underwater to Gela
in Italy, on the island of Sicily, and the natural gas flows
onward to the Italian mainland. The Greenstream pipeline is
operated by Eni in partnership with NOC. It has an annual
capacity of 8 billion cubic meters (282 Bcf), according to the
Energy Intelligence Group.13
Natural gas exports via the Greenstream pipeline were
completely suspended for nearly eight months from March 2011
to mid-October 2011 because of the civil war. Exports
partially recovered to 228 Bcf in 2012, albeit lower than the
2010 level of 344 Bcf.
Liquefied natural gas (LNG)
In 1971, Libya became the third country in the world (after
Algeria
in 1964 and the United States in 1969) to export LNG. Since
then, Libya's LNG exports have remained low, largely because
of technical limitations. Libya's only LNG plant, built in the
late 1960s at Marsa al-Brega, is owned by the NOC and operated
by Sirte Oil Company. However, the plant went offline in
February 2011 as a result of damage sustained during the civil
war and has not exported LNG since early 2011. Prior to its
closure, the plant had been operating at partial capacity
because of lack of maintenance and technology upgrades.
Libya's LNG was being exported to Spain and sold on a spot
basis.14
Electricity
Electricity generation has more than doubled
from 2000 to 2010. Despite growth in electricity generation and a
high electrification rate, the country suffers from regular power
outages. Libya's oil sector has also been affected by power supply
issues, which have compromised production at some of the country's
largest oil fields.
According to the latest 2012 estimate from the
International Energy Agency, 99% of Libyans living in rural
areas and all Libyans living in urban areas had access to
electricity, which are some of the highest electrification
rates among African countries. Despite these high rates, the
country suffers from power outages caused by electricity
shortfalls and frequent disruptions to oil and natural gas
production. In addition to end users being affected by
outages, power shortfalls have also affected production at
some of Libya's largest oil fields, including fields operated
by Agoco and Mellitah.

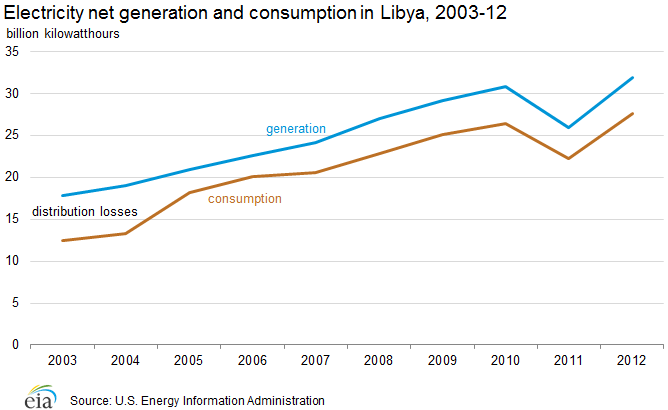

Installed electricity generation capacity has grown by 50%,
from 4.7 gigawatts in 2002 to 7.1 gigawatts in 2012.
Electricity generation has grown at a faster rate than
capacity, more than doubling from 2000 to 2010. The growth in
electricity generation reflects higher economic growth and
greater investment in the oil and natural gas sectors,
particularly after sanctions were lifted. In 2011, electricity
generation fell by 16% from the previous year because domestic
oil and natural gas production was heavily disrupted during
the civil war, but recovered in 2012 to 32 billion
kilowatthours. Libya's power plants are fueled entirely by oil
and natural gas.
Notes
- Data presented in the text are the most recent
available as of November 25, 2014.
- Data are EIA estimates unless otherwise noted.
Endnotes
1Organization of the Petroleum Exporting Countries,
"Libya facts and figures" (accessed November 2014),
http://www.opec.org/opec_web/en/about_us/166.htm2International
Monetary Fund,
Libya country report (May 2013), page 22-23. 3International
Monetary Fund, " Arab
Countries in Transition: Economic Outlook and Key Challenges"
(October 9, 2014), page 13. 4Oil & Gas
Journal, "Worldwide Look at Reserves and Production,"
(January 1, 2014). 5Arab Oil & Gas Directory,
www.stratener.com,
"Libya" (2013), page 256. 6Middle East Economic
Survey, "Libya: Light At End Of Tunnel As Losses Hit $7.5bn,"
(September 20, 2013), Volume 56, Issue 38. 7Arab
Oil & Gas Directory,
www.stratener.com, "Libya" (2013), page 257-8. 8Global
Trade Information Services, Customs data from destination
countries (accessed November 2014),
http://www.worldtradestatistics.com/gta/secure/gateway.cfm
9Oil & Gas Journal, "Worldwide Refining,"
(January 1, 2014). 10Oil & Gas Journal,
"Worldwide Look at Reserves and Production," (January 1,
2014). 11BP, "Statistical Review of World Energy
June 2014,"
http://www.bp.com/en/global/corporate/about-bp/energy-economics/statistical-review-of-world-energy.html.
12Snam Rete Gas, Gas Transportation Quantities,
http://www.snamretegas.it/en/13Energy
Intelligence Group, World Gas Intelligence, "Libya Halts Italy
Flows," (October 8, 2014). 14Arab Oil & Gas
Directory,
www.stratener.com, "Libya" (2013), page 267-8.
|
|
